Raymond Machinery Manufacturing (Wuxi) Co., Ltd.

Raytree

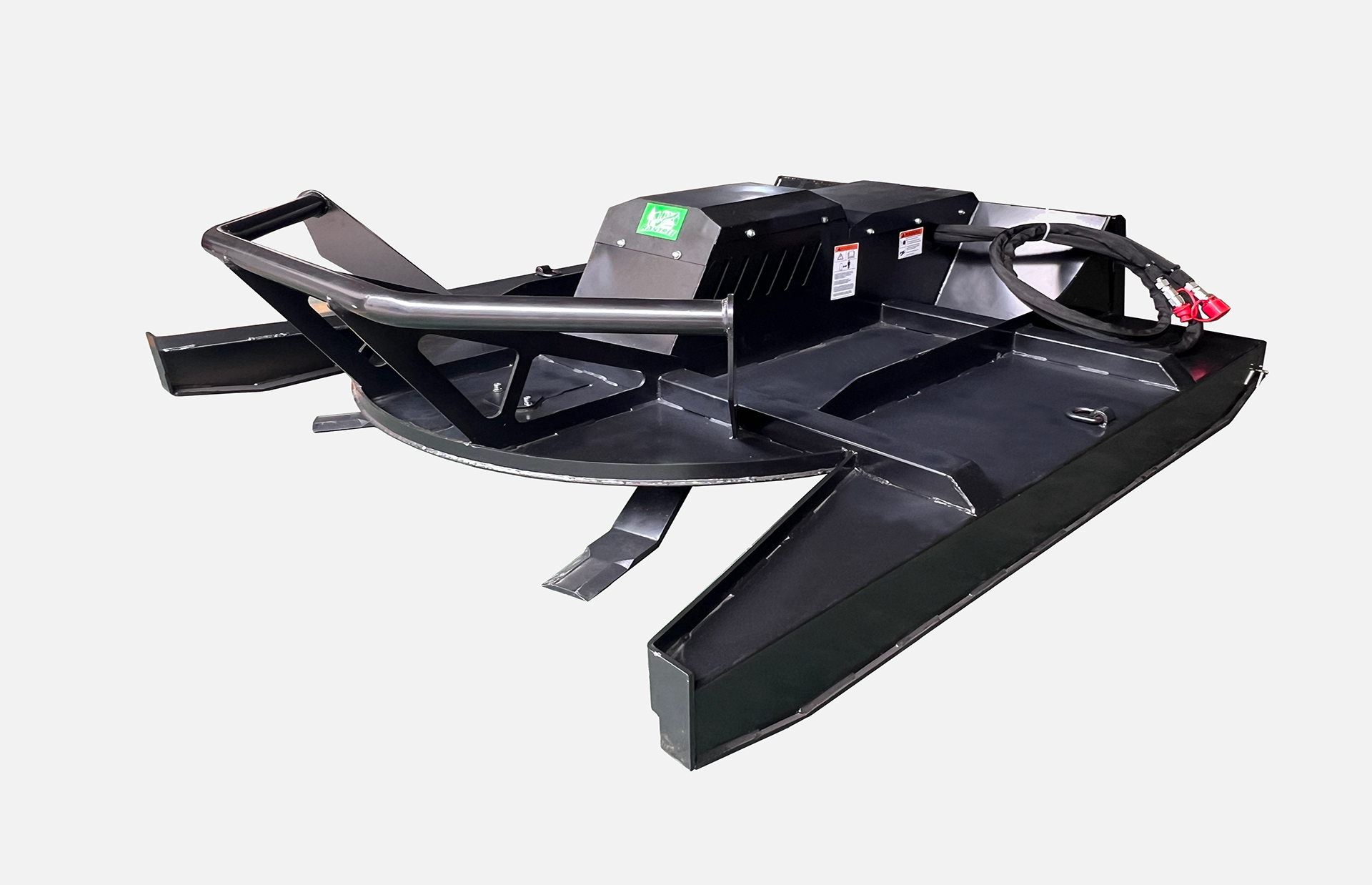

72" Skid Steer 4-Blade Brush Cutter

Model:RHBC72

Features:

4 Double-Edge Hardened Blades 4/5"Thick Manganese steel Blade Carrier 3.5"Max Cutting Capacity 60HP Gearboxes No Drain Tube 1 Year Warranty

Specification:

Cutting Width:72"
Hydraulic Pressure:3050 PSI
Overall Size L79"x W 76.8"x H24"
Flow Rate:18-35 GPM

Learn more

Raytree

41" Feller Buncher

Model:RMFB41

Features:

22.5"Max Cutting Capacity 2 Groups Of Hydraulic Claws Can Cut Trees Continuously 41" Cutting Wheel Diameter 3 ExtraSpare Cutting Teeth Skid SteerLoader:60-100HP 46.5" Maximum Throat 0pening 1 Year Warranty

Specification:

OverallSize:L41"xW47.4"xH75.6"

Working Flow:21~32GPM

Learn more

Raytree

680 Hydraulic Post Pounder

Model:RMPP680

Features:

Operating Weight: 10001b Energy Class: 700 ft-lb Working Pressure: 1600-2000 PS Domed Cup Inside Diameter: 7.9" Impact Rate: 500-900 BPM High Quality Piston Motor 1 Year Warranty

Specification:

Overall Size: L"x W"x H "

Oil Flow:9.5-16 GPM

Learn more

Raytree

Skid Steer Hydraulic Hammer

Model:RMH680

Features:

Skid steer loader: 40-80HP Maximized power-to-weight ratio breaking strength 3Nitrogen-charged operation provides superior breaking efficiency Bottom tie rod bolted design provides easy maintenance Tool bushing for quick, easy replacement Universal skid mount

Specification:

Working pressure: 1600-2000 psi(100-150 bar）

Working flow:9.5-16 GPM(40-70L/min)

Impact energy: 585 joule

Overall Size : L45.3"x W 60.4" H20.6"

Learn more

Raytree

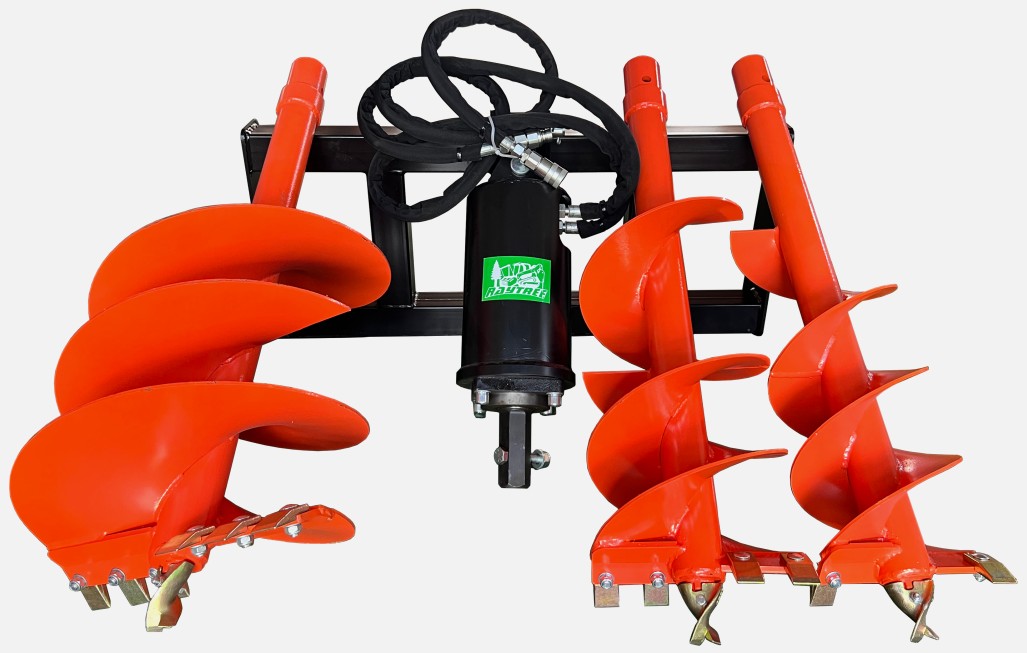

Skid Steer Auger

Model:RMA42

Features:

Maximum drilling depth:42" Motor Mounted Directly To Theplanetary Gear Box With No Chains To Break Or Come Looseit Comes Complete With Mounting Plate, Hoses And Couplingsthere Is No Need To Pay Extra For Anything.

Specification:

Direct Drive Through Planetary Gear.

Various Auger Bit Sizes And Stylesare

Availableheavy Duty Output Shaft.

Three Drill Bits:10",12",18".

Learn more

Raytree

96"Six Way Dozer Blade

Model:RSWD96

Features:

4 Cylinders To Ensure Stable Performance Replaceable Adjustable Skid Shoes Trip Springs Protection Trip Override Pin Tried And Proven Tilt System

Specification:

Overall Size:L94.5"x W36.2 "x H26.4"

Oil Flow:5-10 GPM

Learn more

Raytree

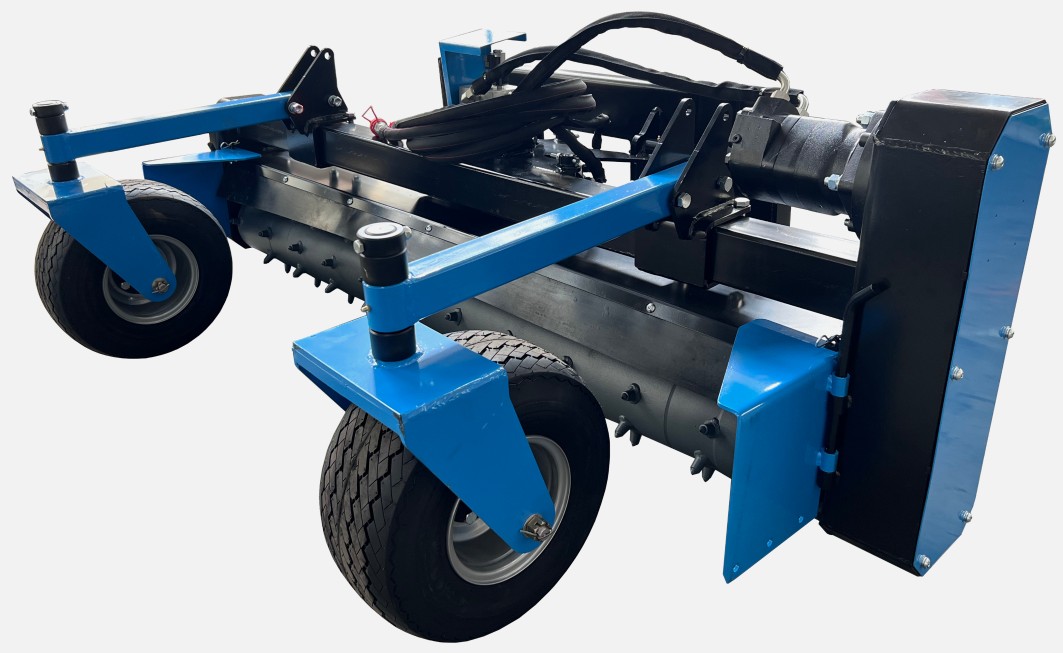

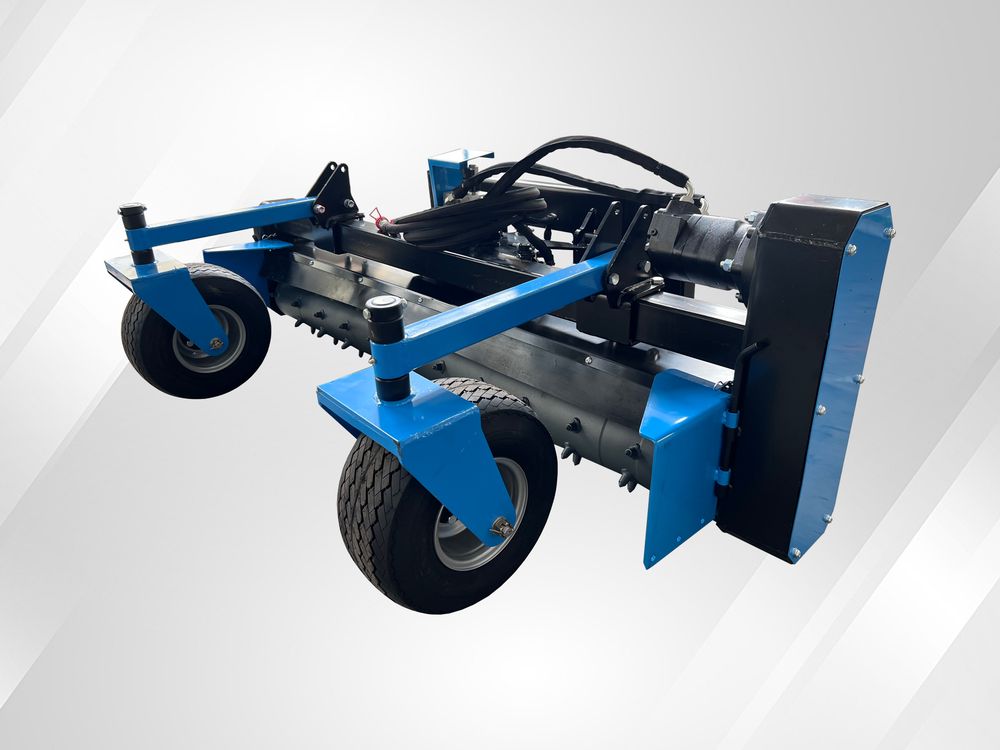

Soil Conditioner

Model:RMSC72

Features:

Make lt Easy To Remove Rocks And Debris And Prepares Soil in One Pass Bi-Directional Drum Features Heavy-Duty Carbide Teeth Hydraulic Angling To Angle 20 Degrees in Either Direction

Specification:

Overall Size: L87.7"xW49"xH28"

Working Width: 72 in

Drum Torque At 3000 psi: 680 Ft-Ib

GPM Range: 12 to 35qpm

Learn more

Raytree

Rock Picker

Model:RMRP72

Features:

High Torque Hydraulic Motor For Maximum Power Bi-Directional Rotation Heavy-Duty Tines Picks Up Material From 2 in. To 24 in,in Diameter More Convenient To Remove Piles Of Stones And Hard Clods

Specification:

Overall Size: L79.3"xW57.4"xH35.7"

Picks Up Material From 2 In To 24 In, In Diameter

Working Width: 72in

Grated Bottom With 2 In. Openings

Requires Only 6 GPM Hydraulic Flow

Learn more
